Product Description

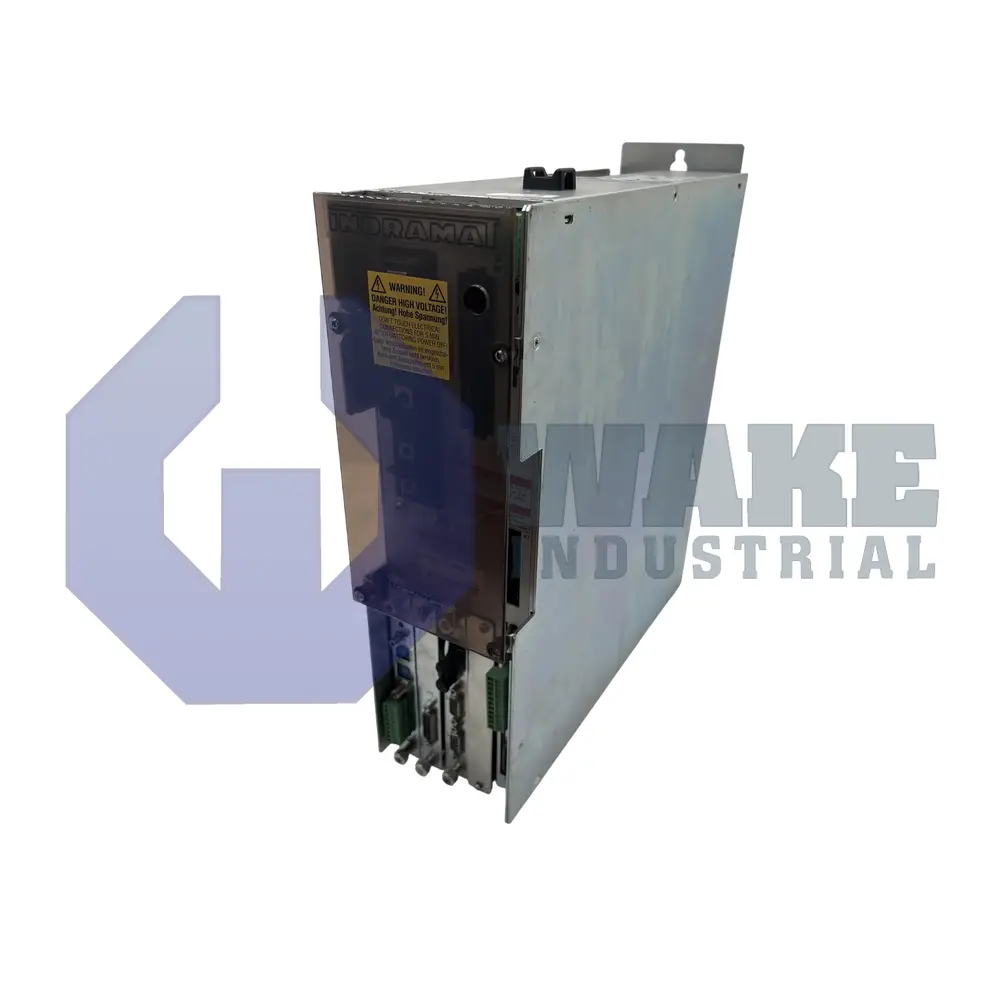

The Bosch Rexroth DDS02.2-W100-BE05-03-FW drive controller uses a SERCOS interface for its command communication. This controller has a power section with a DC bus voltage of 300V +/-15%. The product features a current consumption of 500mA at 24VDC. The device supports operation between 0°C and 45°C. The unit comes in a weight of approximately 7.5kg. It is not protected against penetration of water. The drive controller with an excessive current level and high output must be placed near the power supply when multiple controllers use a single power supply. This product must have a clearance distance of at least 80mm above and below it inside the control cabinet. The device features an overall length of 355mm.
The drive controller must encompass separate routing of its signal lines and supply lines to avoid interference. The power of this product can be turned ON when its ready-to-operate Bb contact is in the closed state. The device should neither be tipped nor dropped in during its transportation. The unit is used in conjunction with several AC motors of the same manufacturer. Its L+, L- and PE terminals are connected using M5 screws with a tightening torque of 3Nm. This DDS02.2-W100-BE05-03-FW controller is available with a year’s Wake Industrial warranty in custom military-grade packaging.
The product must never be operated even for a brief period without the permanent connection of its earth wire as per the earth diagram. The device requires sufficient cooling time after it has been switched OFF for its capacitors to get discharged fully. The unit may move dangerously if the connected motor has software errors or defective components. It is a good choice for use in robotics. The controller operation should not take place near radio, remote-control and high-frequency equipment. The product handling has to be carried out using suitable lifting and mounting equipment.
