Product Description

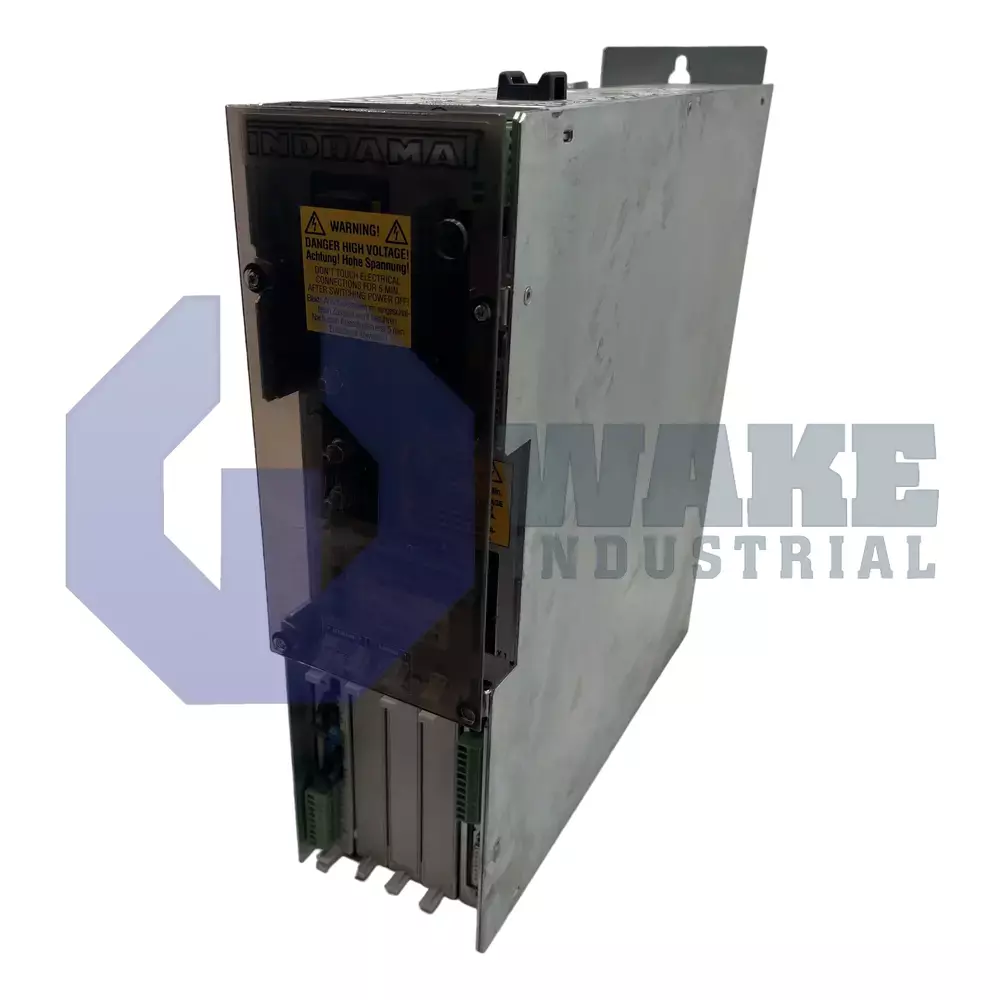

The DDS02.1-W200-DS01-01/S003 drive controller manufactured by Bosch Rexroth operates at a maximum temperature of 55°C. This drive controller features an alphanumeric display to diagnose and clear any existing problem. The product has a series code of 2. The device is designed to support installation in a control cabinet. The device depicts an S1 memory reset button at the top of its front panel. This unit has two outputs that can be connected to an oscilloscope. The signals on these outputs can be selected through a SERCOS interface. The controller can be run in a closed-loop operating mode. Its power source should be in the ready-to-operate mode in order to use the status display for fault diagnostics.

The drive controller has 320VDC +/-10% DC bus voltage. The product incorporates a SERCOS interface for command signal communication. The SERCOS interface is plugged into the first card slot. The device supports additional plug-in cards for its second position feedback inputs. The unit is supposed to be set with a unique address ranging between 1 and 99. Its data is configured and/or stored in a block format. The controller should be replaced if its H1 display highlights a -1 code. This DDS02.1-W200-DS01-01/S003 controller can be dispatched globally to your preferred destination.

The product has to be in the configured state to perform a given task. The device comprises a command communications module, a software module and additional plug-in modules when it is configured. The software module of the unit is inserted into the U5 slot. This drive controller portrays its DC link connection and motor power connection at the X5 connecting points. The product is affixed with a rating plate showing the type designation. The matching of the device to the associated motor is done using various parameters. This digital controller is backed up by a one-year warranty period.
