Product Description

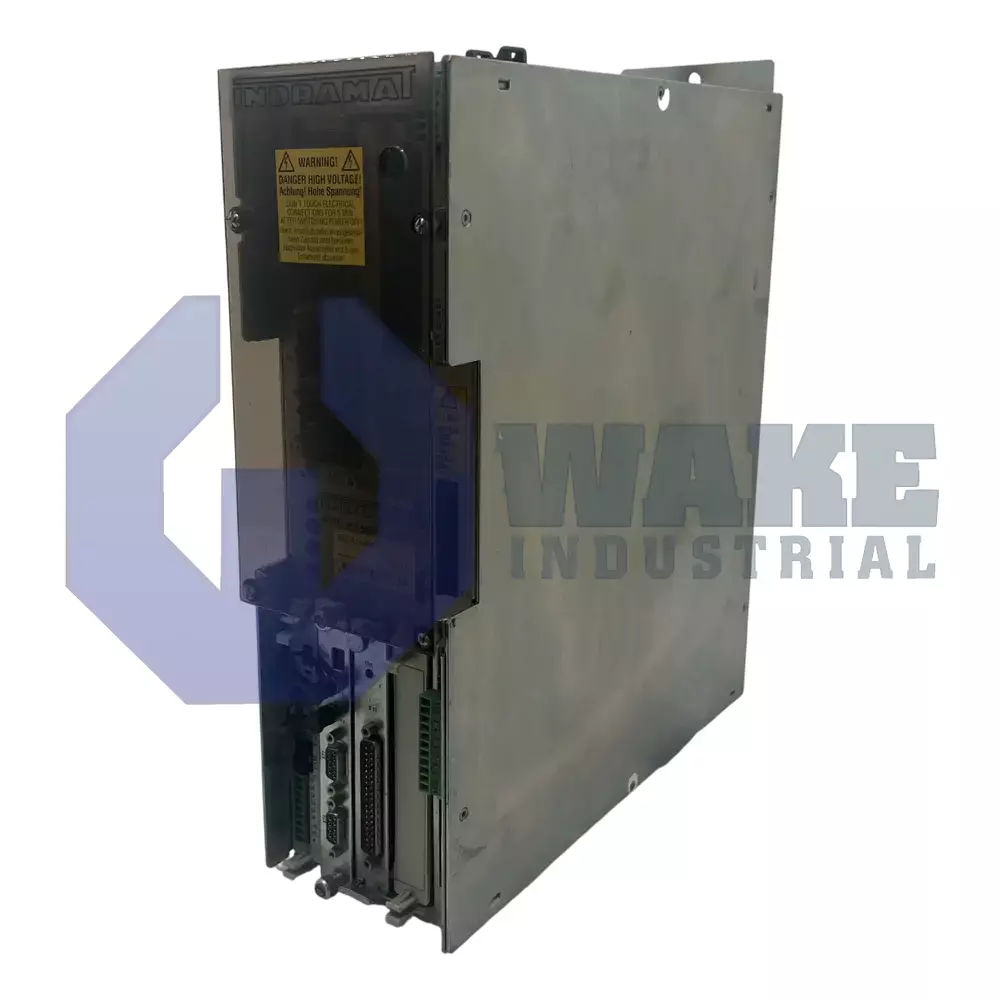

The Bosch DDS02.1-W100-DS68-00-FW is a digital drive controller. It is designed for industrial applications. The controller is used for motor control and is suited to applications such as printing machines, textile machines, assembly equipment, robots and electronic transmissions. The function ID of the DDS02.1-W100-DS68-00-FW is 68 and the function ID version is 00. The firmware for the drive system has to be ordered separately from the hardware. The drive firmware is stored on a software module that installs in slot U5 on the basic unit. Slot U1 on the basic unit is reserved for a command communication module which in the case of the DDS02.1-W100-DS68-00-FW is SERCOS. Slots U2 to U4 are available for optional modules. The optional modules for DDS controllers include command card, Interbus S slave module, ARCNET coupler card, high resolution position interface, summing input interface, gearwheel encoder interface and incremental position interface.
Nominal output rating of the DDS02.1-W100-DS68-00-FW is 100 Amps. This rated output is delivered when ambient conditions comply with those that are recommended by Bosch. The recommended ambient conditions include 0 to 45 degrees Celsius temperature and 0 to 1000 meters altitude. The DDS02.1-W100-DS68-00-FW uses air from inside the control cabinet for cooling. This means that large cabinets may be required to ensure appropriate spacing between heat-generating devices inside the same cabinet. Air conditioning may even be required if natural convection does not maintain recommended ambient temperature. The DDS02.1-W100-DS68- 00-FW supports digital servo feedback. The drive mounts vertically and measures 390 x 60 x 325 millimeters. A minimum spacing of 80 millimeters is recommended by Bosch on the top and bottom sides of the mounted DDS02.1-W100-DS68-00-FW digital servo controller.
