Product Description

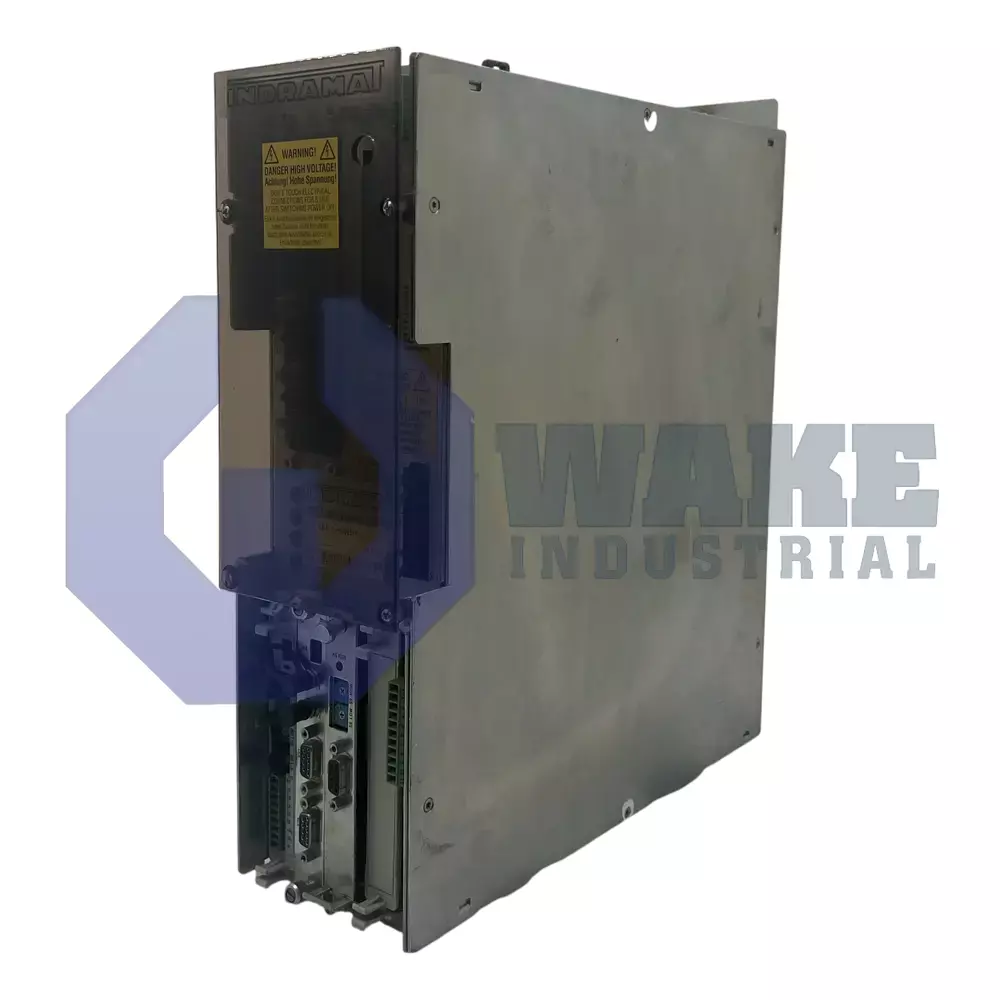

The DDS02.1-W100-DS61-00-FW is a basic unit for DDS digital drive controllers. Bosch has designed DDS drives with modular hardware and software. The modular basic unit allows installation of up to three optional modules. The firmware can be ordered with different features sets that are optimized for different applications. In this way DDS controllers can be adapted to a wide range of applications. DDC controllers are used to control compatible motors that include products from the MDD, MKD, LAC product lines. Typical applications for DDS motors include packaging machinery, robotics and handling machines. The communication module installed on the DDS02.1-W100-DS61-00-FW is SERCOS, which is a standard for real-time serial communication. SERCOS allows control equipment to communicate over fiber optic cables at 2 / 4 Mbps data rates. The fiber cables are deployed in ring topology which provides redundancy for single fiber cuts / single node failures.
The firmware for the DDS02.1-W100-DS61-00-FW controller has to be ordered separately. The function ID for the controller is 61. The function ID version for the controller is 00. The DDS02.1-W100-DS61-00-FW also supports digital servo feedback. The rated output of the drive is 100 Amps. The DC bus on the controller is rated for 300 Volts DC with up to ±15% variation. An overload factor can be found in the controller selection list. Using this overload factor it is possible to set the continuous current of the controller at the time of commissioning in terms of the motor. The maximum peak current / continuous settings for the DDS02.1-W100-DS61-00-FW include 100 Amps / 40 Amps. The peak current / maximum continuous current settings for the DDS02.1-W100-DS61-00-FW include 60 Amps / 60 Amps.
