Product Description

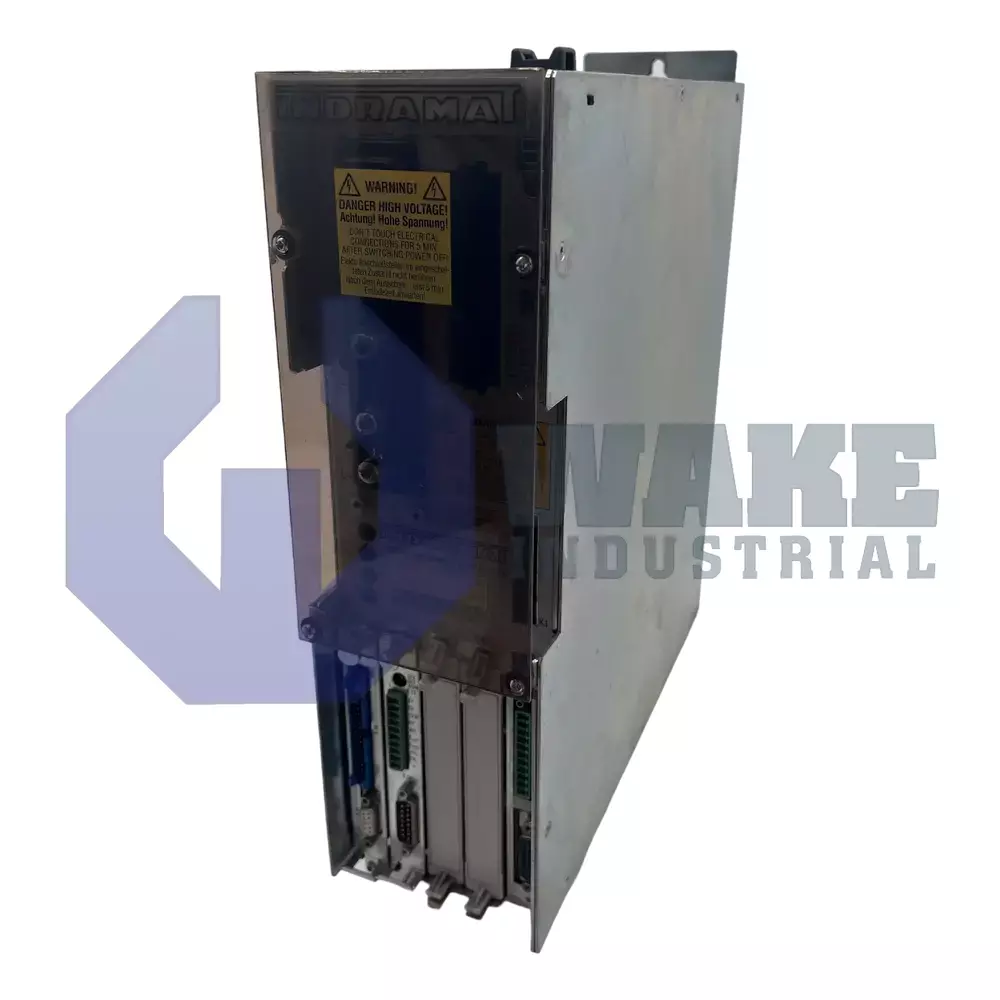

The DDS02.1-W050-DL20-01-FW drive controller offered by Bosch Rexroth must neither be tipped nor dropped during transit. This controller should also always be dry without load during transit. The product must be connected to the motor feedback using the manufacturer’s feedback cable. The analog diagnostic outputs of the device feature an output voltage rating of 10VDC and a current load capacity of 4mA. The starting lockout mechanism of the unit is not designed to bring the moving axes to standstill mode. This lockout can be activated by applying a voltage rating between the input terminals. It features two control inputs for relay coils with a 1.5W power rating and 20VDC to 30VDC voltage rating.
The chassis earth connection of the controller to the power supply must have a core cross-section of at least 10mm2. The product comes with a fault reset key to clear any fault encountered during operation. The ground connection to the motor is established at the top of this device. Its A1, A2 and A3 terminals are connected with M6 size screws that have 5Nm tightening torque. The unit installation has to be done only in a vertical orientation. This product features 95% maximum permissible relative air humidity. The DDS02.1-W050-DL20-01-FW controller has warranty backup support for one year.
The drive controller has empty third and fourth slots in the basic unit. The product features a positioning module with one axis. This module encompasses an additional interface for connecting a DBS02.2 module. This device should be checked for the insertion of correct modules before it is commissioned. It features 25g/m3 maximum allowed absolute air humidity. The configuration rating plate of the unit helps in procuring the correct replacement parts efficiently and quickly when there is a breakdown. The U5 slot at the top of the product is reserved for the software module. This controller can be transported globally to any destination through noteworthy freight carriers.
