Product Description

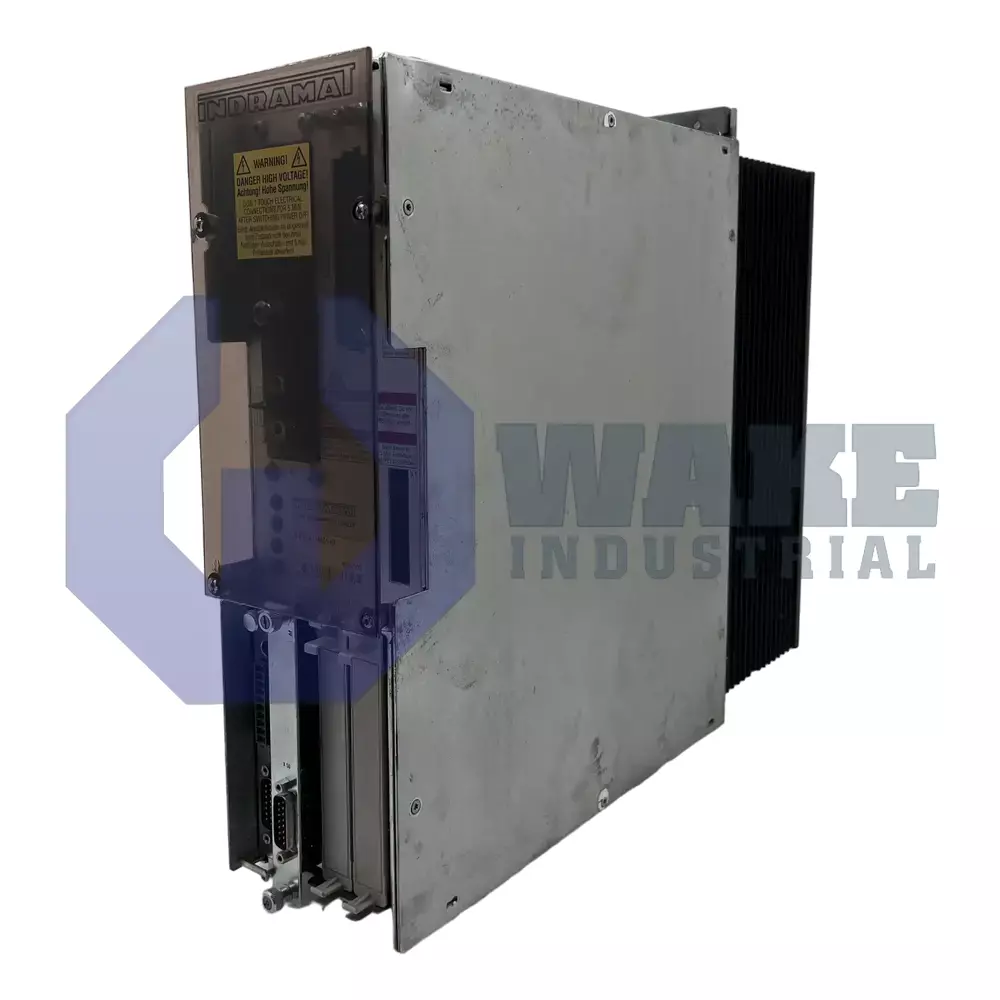

The Bosch Rexroth DDS02.1-A200-DA07-00 is a modular drive controller. It is part of the DDS product line. The basic unit and the plug-in units can be ordered as an assembled unit or separately. The modular architecture of the controller enables adaptation to different customer requirements. There are a total of five slots on the basic unit of the controller. One slot is dedicated for the software module which contains the firmware and the operating parameters for the drive. A second slot is dedicated for a command communication module. The three remaining slots are available for a wide range of supported plug-in modules. The plug-in modules that can be installed on the controller include analog interface with incremental encoder emulator, analog interface with absolute encoder emulator, SERCOS, ARCNET coupler card and several others.

The rated output of the DDS02.1-A200-DA07-00 controller is 200 Amps. The controller supports digital servo feedback. Communication module on the DDS02.1-A200-DA07-00 is analog. A configuration rating plate attached to the controller lists the type designations for the drive controller, the basic unit, the software module and the plug in modules. These type designations can be used to determine the components for the respective slots. The configuration rating plate should be checked prior to controller configuration to ensure that the correct modules are in place. The permissible ambient temperature with rated data is 0 to 40 degrees Celsius. The maximum permissible ambient temperature with derated data is 55 degrees Celsius. The maximum installation elevation with rated data is 1000 meters. The protection category of the controller housing is IP10. The controller is designed for vertical mounting inside a suitable control cabinet so that it will be protected from dust and moisture.
