Product Description

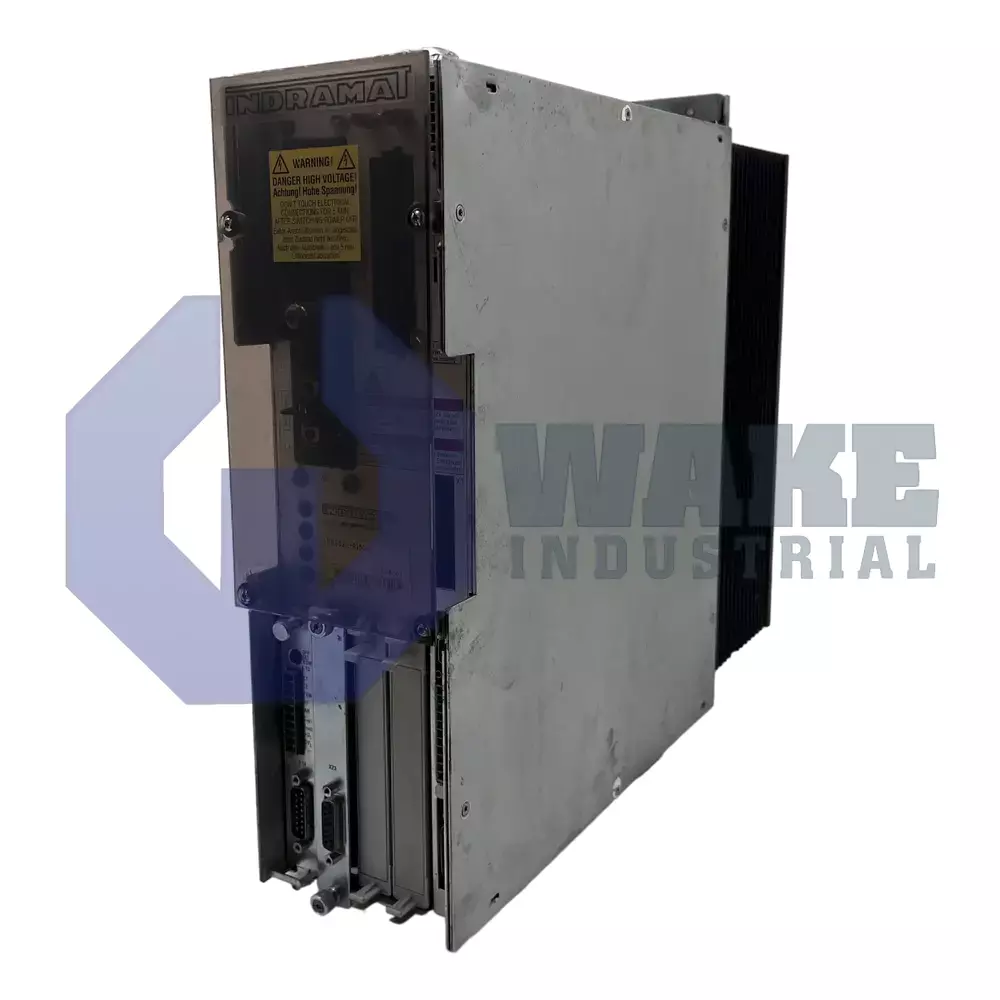

The Bosch Rexroth DDS02.1-A200-DA06-00 is a DDS series drive controller. The controller has a modular structure: the basic unit has five slots for plug in modules. However two slots are reserved and three are available for various plug-in modules. The reserved slots are those that are dedicated for a software module and a command communication module. The firmware for the DDS02.1-A200-DA06-00 and the operating parameters are stored on the software module. The software module can be removed from a faulty drive and installed on a replacement drive. In this way the modular drive architecture ensures minimum downtime in case of drive hardware failure. The DDS02.1-A200-DA06-00 requires regulated 24 Volts DC input. The output current rating of the controller is 200 Amps. The weight of the controller is approximately 7.5 kilograms.

The housing of the DDS02.1-A200-DA06-00 is IP10 rated. It provides protection from solid objects with 50 millimeter dimensions. The housing provides no protection from dust or from liquids. It should therefore be installed inside a suitable control cabinet. The minimum amount of vertical spacing to be provided above and below a mounted DDS02.1-A200-DA06-00 controller is 80 millimeters. Air from within the cabinet is used by the controller for cooling. It should be ensured that air can flow freely. Any impediments to airflow should be removed. The recommended ambient conditions for DDS02.1-A200-DA06-00 controller operation are 0 to 45 degrees Celsius operating temperature and maximum 1000 meters altitude. The controller comes with support for digital servo feedback. The communication module on the controller is analog. The function ID of the controller is 06 and the function ID version is 01. Only trained and qualified personnel should be allowed to work on the controller.
