Product Description

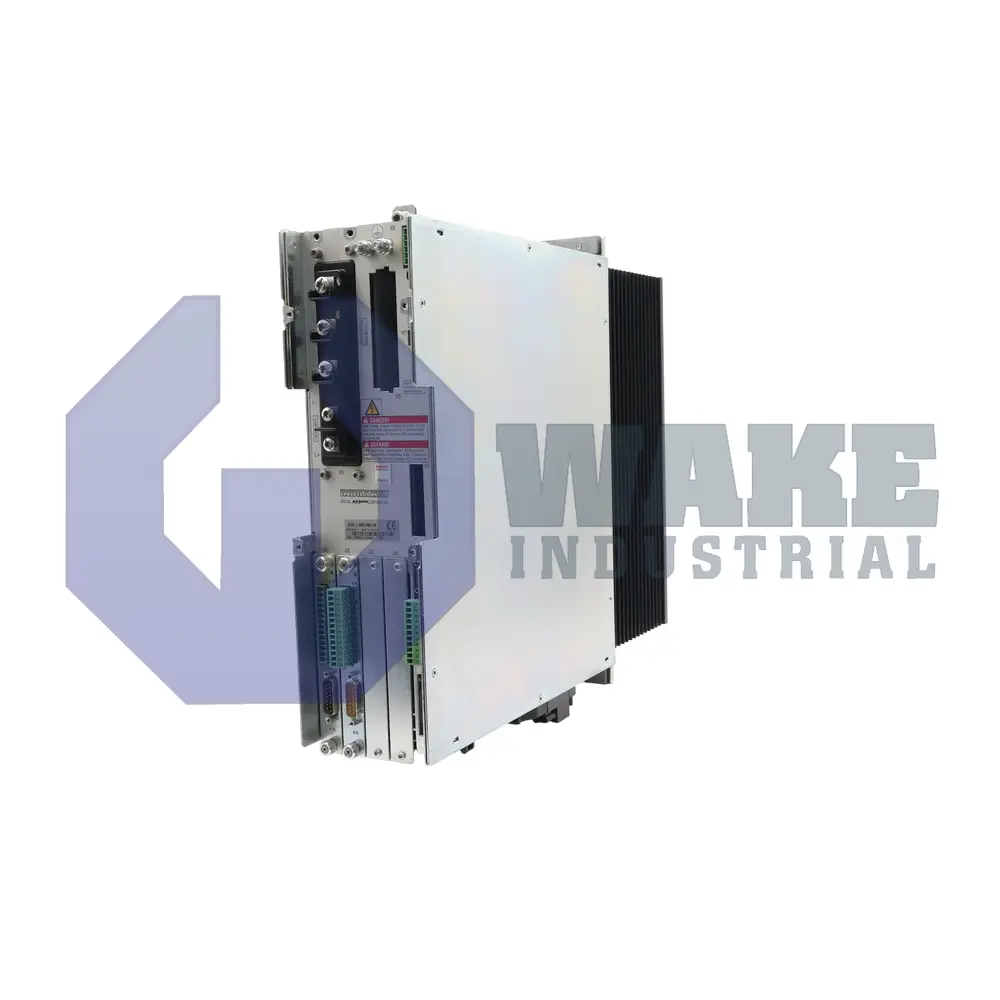

The DDS02.1-A100-DS63-00-FW drive controller manufactured by Bosch Rexroth allows the fitting of several modules in its basic unit. The functions of this product are determined by its firmware. The device encompasses a configuration rating plate providing details of the inserted modules. The unit mounting is always done after removing its face plate. This face plate should once again be refitted after the mounting is done. The controller comprises a power section with a DC bus voltage of 300V +/-15%. The overload factor of the power section helps to set the continuous current of this drive controller in terms of the associated motor when it is being commissioned.
The controller has a 1 version code. The product depicts a peak current rating of 90A. The device implements digital servo feedback using the encoder. The unit must take load factors into consideration if the ambient conditions are exceeded. It weighs approximately 11kg. This product is protected against penetration of solid objects with diameters of more than 50mm. The device with the highest current rating must be near the supply unit when multiple controllers are used. The drive should encompass sufficient distance from the supply unit within the control cabinet. This DDS02.1-A100-DS63-00-FW drive features a one-year warranty.
The energy dissipated by the product is conducted outside directly and does not get accumulated inside the control cabinet. This device is mounted on the rear wall of the control cabinet using a mounting panel. The unit has to always be mounted in vertical orientation. Its L+, L- and PE terminals are tightened with M6 screws using a tightening torque of 3Nm. This drive controller must not have any condensation on its surface. The signal lines and supply lines of this product are to be routed away from each other to avoid interference. The device is shipped in custom military-grade packaging.
