DDS02.1-A100-DS46-00-FW

Product Description

The DDS drive controller from Rexroth Indramat is a modular unit that is configurable and adaptable to several functions using various modules. A configured version of the DDS unit features compatible firmware and hardware. By design, the functionalities of these units are determined by their firmware. Other components of a configured DDS drive controllers include plugin modules and software modules. Drive controllers in the DDS series are suitable for linking with supply units from Rexroth Indramat. For safety reasons, this model is not recommended for use with unregulated TVM supply units, especially the TVM 1.2 series.

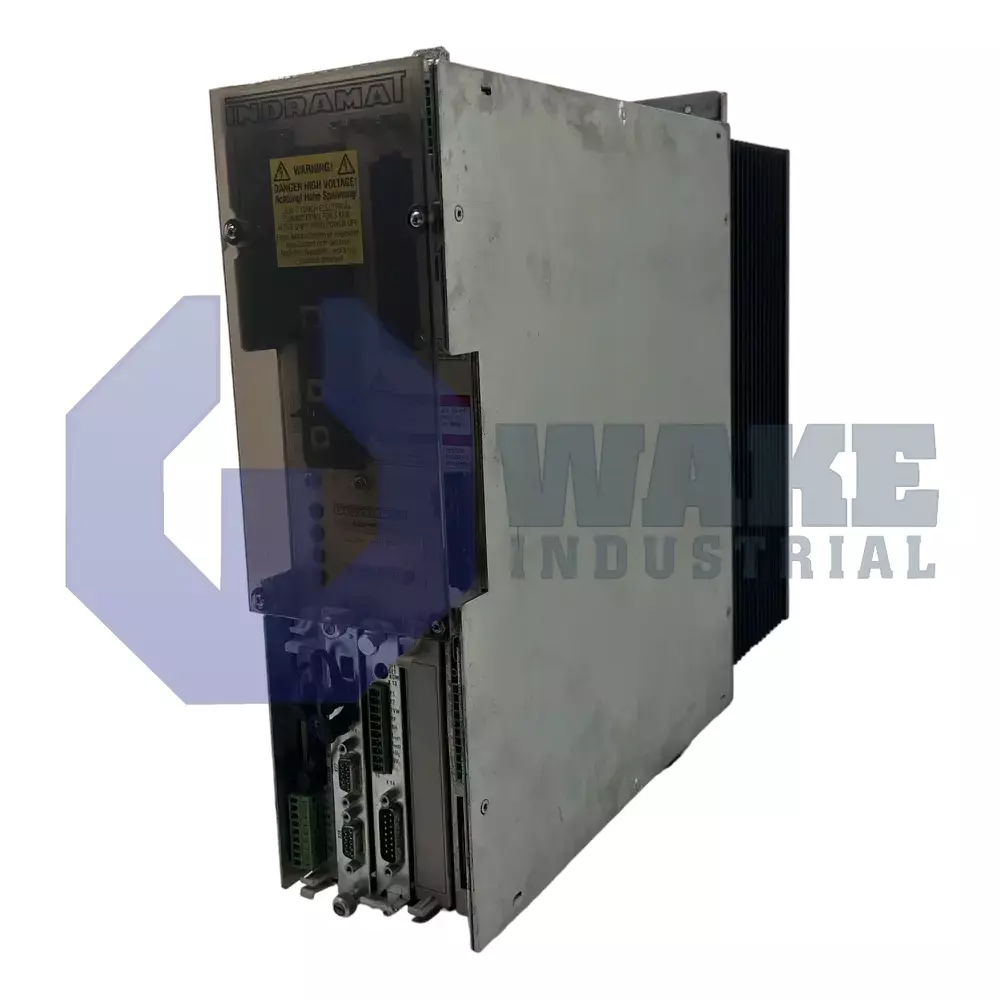

The DDS02.1-A100-DS46-00-FW is a product in the Rexroth DDS drive controller series with a rated current of 100 Amperes. It implements an air-cooling technique, and its motor feedback is the digital servo feedback type. The communication module of the DDS02.1-A100-DS46-00-FW is the SERCOS interface. In addition, the function I.D. of this unit is designated 46, and its function I.D version is 00.

The DDS02.1-A100-DS46-00-FW can serve different drive applications but with varying software modules. Generally, software modules would contain the drive instructions, drive parameters, and the required firmware. If a replacement DDS unit is needed during use, the parameters on the software module can be transferred to a new unit intended for the same operation. The continuous current of the DDS02.1-A100-DS46-00-FW is 80 Amperes, and its maximum constant current is 90 Amperes. Also, its direct current voltage is rated at 300 Volts (± 15%), and power dissipation is 97 Watts. Its motor feedback type has a current consumption of 40 mA at 24 Volts. The transport and storage temperature range of this drive controller is between -30 ^oC to 85 ^oC.
