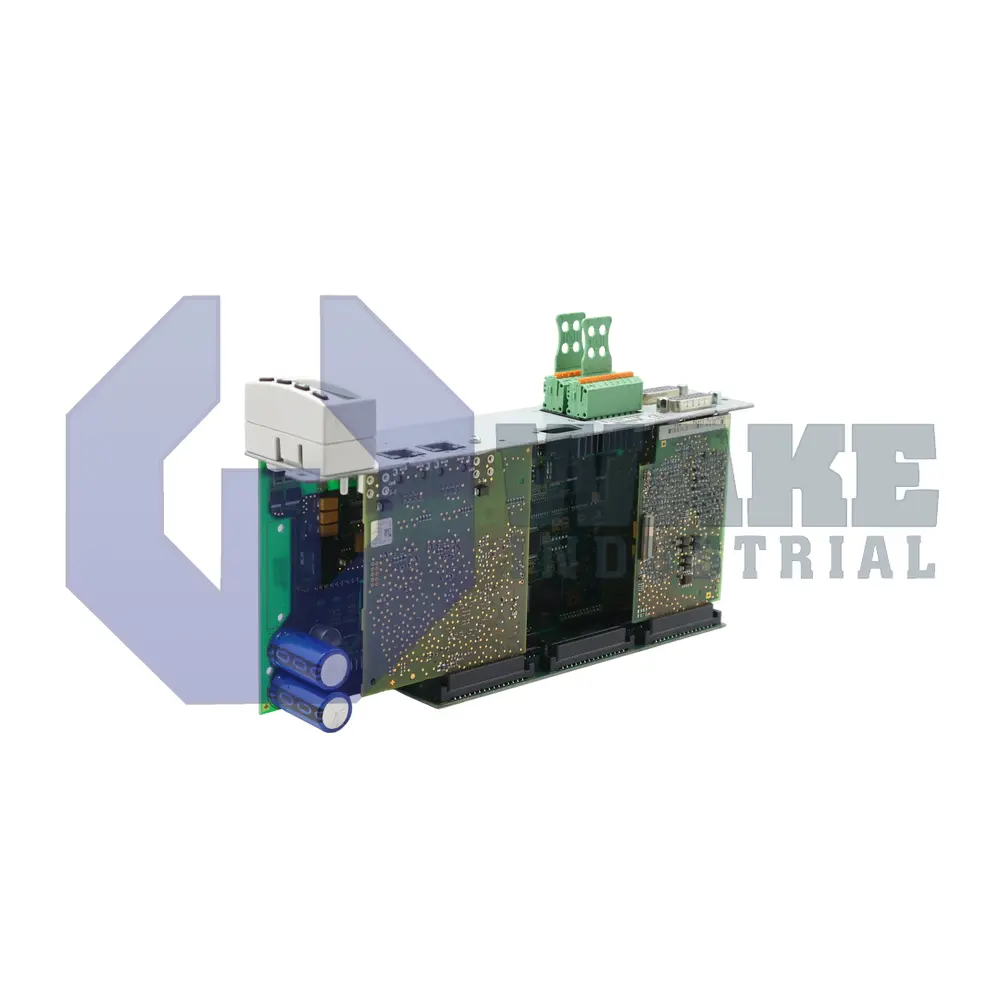

CSH01.1C-ET-EN1-EN2-NNN-NN-S-NN-FW

Product Description

The CSH01.1C-ET-EN1-EN2-NNN-NN-S-NN-FW advanced control section from Bosch Rexroth is used with the manufacturer’s drive controller. This product is fitted inside a power section. The device features digital inputs and outputs. These inputs and outputs must have a connection to an external supply voltage. The unit is configurable and features a single axis. It has one configuration slot with safety technology. This section does not support operation with the VCP01.2 comfort control panel from the same manufacturer. The product must be mounted and dismounted only by people who are authorized and trained to do so. The device may get damaged due to interference of electrostatic charges when it is operated.

This control section mounting and dismounting action must not be done for more than 20 times in a drive controller. The product is meant to always be used in its original state without any structural modification. The device belongs to the CSH product group of such offerings by the manufacturer. The drive controller in which the unit is fitted must be commissioned before use. The section supports a maximum of four digital outputs. It uses a Multi-Ethernet interface for master communication. This interface has eight pins and renders 100Base-TX compatibility according to IEEE 802.3u standards.

The product should always be protected against polarity reversal of the supply voltage and incorrect connection by incorporating a protective diode in the power supply at the X31.8 connector. This device has a line code of 1. This unit comes with one Normally Open relay contact. The Multi-Ethernet interface used by the section has one LED display for highlighting the network status. The first two pins of the interface are reserved for transmitting signals through differential outputs. This CSH01.1C-ET-EN1-EN2-NNN-NN-S-NN-FW section has a one-year warranty backing and can be shipped globally to the desired destination.
