CML45.1-NP-500-NA-NNNN-NW

Product Description

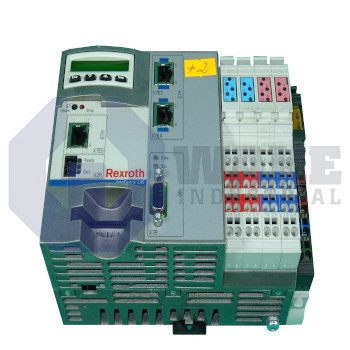

The Bosch Rexroth CML45.1-NP-500-NA-NNNN-NW is a microprocessor based industrial control system. It belongs to IndraControl L45 series which is a universal hardware platform designed for industrial applications including handling systems, assembly systems, packaging machines and printing machines. The CML45.1-NP-500-NA-NNNN-NW is powered by a AMD LX 800 microprocessor clocked at 500 MHz. The device includes 256 MB DRAM. However, neither NVRAM nor SRAM are available on the system. Firmware is not preloaded on the system and needs to be ordered separately. Communication interfaces available on the system include ProfiBus master-slave interface and one Ethernet interface with RJ 45 jack. Optional interfaces including SERCOS and additional Ethernet interfaces can be ordered separately if required. The CML45.1-NP-500-NA-NNNN-NW includes 8 electrically isolated digital inputs and 8 electrically isolated digital outputs.

An eight-character display is located on the left side of the CML45.1-NP-500-NA-NNNN-NW along with four operating keys, a single LED, a rest button, one Ethernet interface and a slot for a Compact Flash card. The communication interfaces are located in the middle and voltage supply terminals and terminals for digital I/Os are located on the right side of the system. Housing of the system has inline design and comes with IP20 protection rating. Height of the CML45.1-NP-500-NA-NNNN-NW is 107.5 millimeters, the length is 175.9 millimeters and the width is 120 millimeters. Cooling fan is not available on the system. Installation of the system should be avoided in areas that are exposed to direct sunlight. A minimum of 100 millimeters spacing should be provided above and below the unit to allow for proper air flow. Furthermore, a minimum of 30 millimeters spacing should be provided on both sides and in front of the system. This control unit can be shipped globally with a one-year warranty period from Wake Industrial.
