Product Description

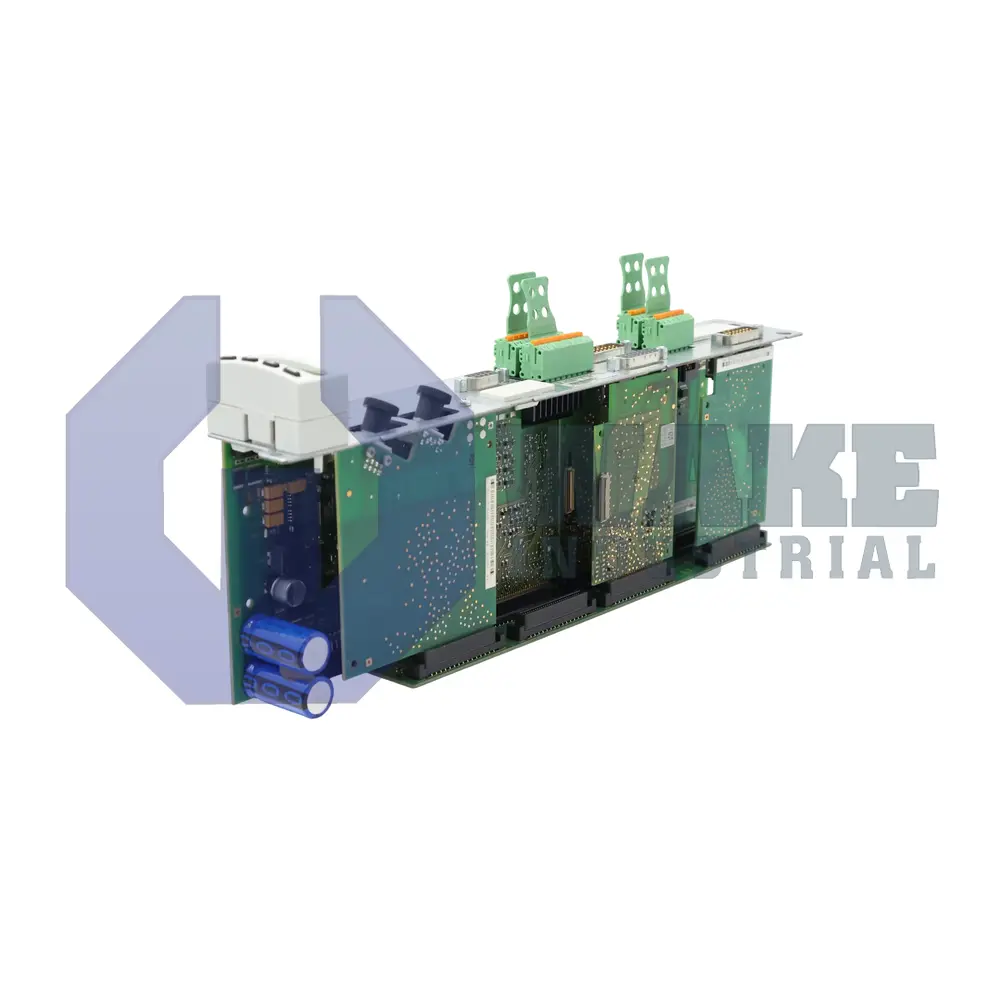

The CDB01.1C-SE-ENS-ENS-NNN-MEM-S2-S-NN-FW basic universal control section is capable of supporting either a memory card with loaded firmware or a preformatted memory card. The preformatted card helps in the easy transmission of parameters. This Bosch Rexroth control section comprises digital inputs and outputs conforming to IEC 61131, Type 1 specifications. These outputs are not intended to be operated at low resistance sources. The section features two inputs each of Type 2 and Type 3 that can be configured as probe. These probe inputs have a minimum pulse width of 4μs. They help in preventing incorrect evaluation when they are controlled using bounce-free switching elements.
The control section must not be used when there is extreme temperature fluctuation. The product uses high-side switches for the realization of its digital outputs. These outputs are capable of actively supplying current but not sinking it. Their energy absorption capacity helps in limiting voltage peaks when the induction loads are turned OFF. The section features three switching frequencies of 2kHz, 4kHz and 8kHz. This product portrays an 8-pole circular RS 232 serial interface for parameterization, programming and diagnosis during servicing and commissioning. The third and fifth pins of this interface are used to transmit and receive data respectively.
The product features 9W power consumption at 24VDC. The device uses a MEM optional module to emulate incremental encoder and absolute value signals for further evaluation using a control unit. These signals portray isolation galvanically from the circuit board without the need for an external power supply. The MEM module encompasses protection against overload. The section uses its probe-type digital inputs to detect less sophisticated measuring marks. This product comes with two axes. The device has a current control cycle time of 125µs. This control section associated with a warranty period of one year can be delivered through a trustworthy logistics team with a worldwide presence.
