CDB01.1C-SE-EN1-EN1-EN2-NNN-NN-S-NN-FW

Product Description

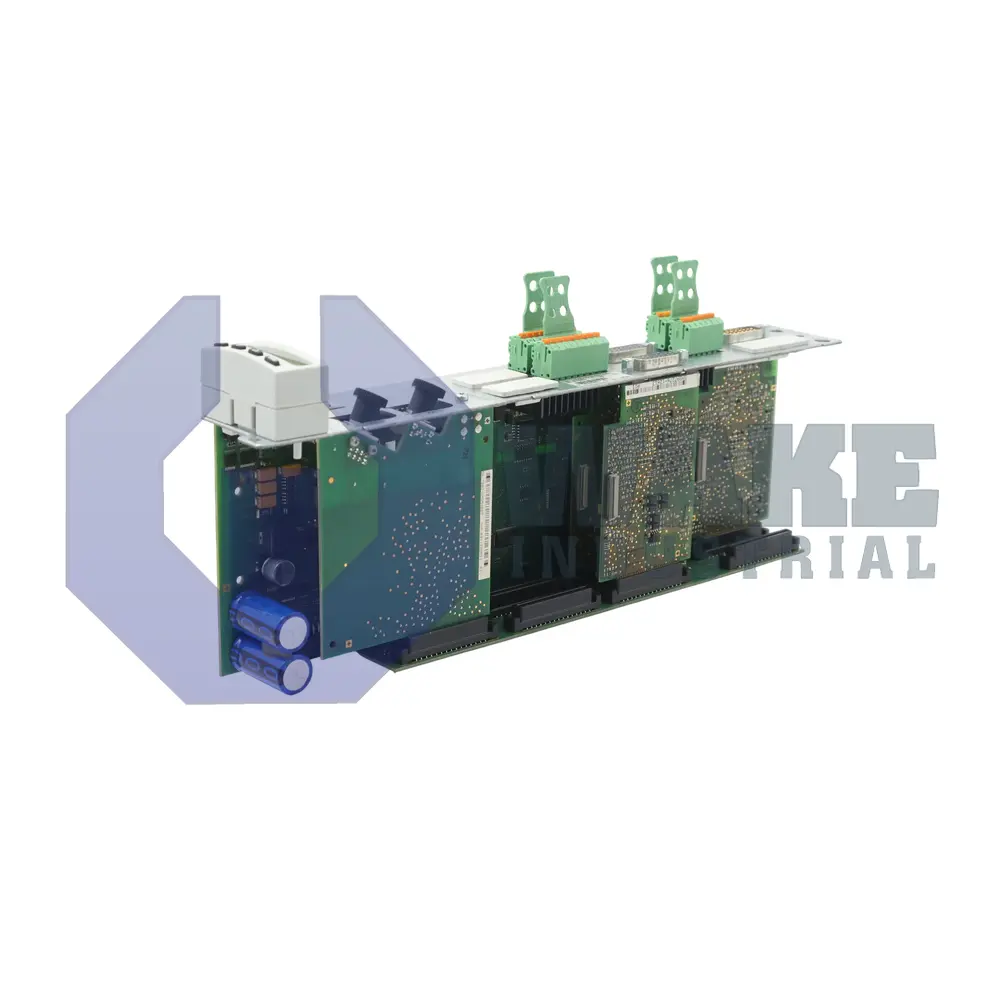

The CDB01.1C-SE-EN1-EN1-EN2-NNN-NN-S-NN-FW is a control section for Bosch Rexroth IndraDrive controllers. It mounts onto a power section that provides 24 Volts DC supply and power for the basic unit of the control section and installed optional modules. Each CDB01.1 series control section has a total of five slots that can accommodate various plug in modules. Four of these slots are reserved for function modules and one slot is for a safety module. The CDB01.1C-SE-EN1-EN1-EN2-NNN-NN-S-NN-FW is supplied without a safety module. Three of the slots reserved for function modules are occupied: slots 1 and 2 have encoder HSF/RSF modules installed in them and slot 3 has an encoder EnDat 2.1 module installed in it.  Master communication interface on the CDB01.1C-SE-EN1-EN1-EN2-NNN-NN-S-NN-FW is SERCOS which supports 2/4 Mbps data rates between SERCOS-enabled control devices.

The CDB01.1C-SE-EN1-EN1-EN2-NNN-NN-S-NN-FW is a configurable basic universal type control section. It is configurable from only a standard control panel. Controllers featuring the control section are typically used for motor control in applications such as handling and mounting systems, food machines, packaging machines and printing machines. The CDB01.1C-SE-EN1-EN1-EN2-NNN-NN-S-NN-FW is designed for vertical mounting. Its dimensions are 322.6 x 49.5 x 103 millimeters. Power consumption of the control section basic unit is 9 Watts. Each of the encoder modules installed on the unit draws 6 Watts. The power consumption of the SERCOS module is 2 Watts. Therefore the total power consumption of the CDB01.1C-SE-EN1-EN1-EN2-NNN-NN-S-NN-FW is 29 Watts. A standard control panel, if connected to the unit, draws an additional 1 Watt of power. The recommended ambient conditions for device operation are 0 to 40 degrees Celsius and 0 to 1000 meters. The CDB01.1C-SE-EN1-EN1-EN2-NNN-NN-S-NN-FW and associated devices should be handled by qualified personnel. This product can be shipped globally with a one year warranty period from Wake Industrial.
