CDB01.1C-ET-NNN-NNN-NNN-NNN-L2-S-NN-FW

Product Description

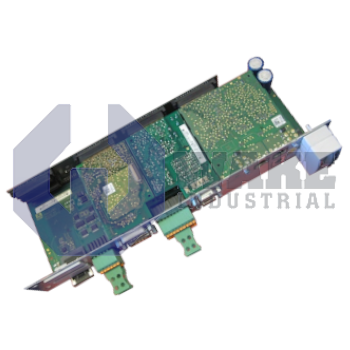

The CDB01.1C-ET-NNN-NNN-NNN-NNN-L2-S-NN-FW is a control unit that is plugged into the power section of the IndraDrive controller. It can be delivered as a separate unit in exceptional cases. Only persons trained by Rexroth Indramat can mount and dismount this control section. It can only be mounted and dismounted for a maximum of 20 times. It falls under the CDB product family and features one line and design, a configurable option, multiEthernet communication, safe torque off safety option, and a standard control panel. Its firmware must be ordered separately.

This double-axis control section has a memory card slot, serial interface, digital inputs, and an interface for the control panel. The multi-Ethernet module allows the drive controller to be integrated into different Ethernet field bus systems such as EtherCAT, sercos III, or Profinet. It comes with LED displays for network status and connection points. The yellow LED indicates that data transmission is running while the green LED indicates that a connection to a network is available. The CDB01.1C-ET-NNN-NNN-NNN-NNN-L2-S-NN-FW features a control panel with a single-line display that has to be plugged in when the CDB01.1C-ET-NNN-NNN-NNN-NNN-L2-S-NN-FW is switched on. Avoid plugging it in or disconnecting when the drive controller is switched on.

The panel has four keys that allow the service technician to extended diagnoses display at the drive controller and trigger simple commands. With it, the operator can set the address of the drive, establish the error memory, set the analog outputs, and set the transmission power. The technical parameters of the CDB01.1C-ET-NNN-NNN-NNN-NNN-L2-S-NN-FW include a minimum load of 10mA of the contacts, a pickup delay of 10ms, and a drop-out delay of 10 ms. You can get it from Wake Industrial with a one-year warranty period.
