2AD100D-B05OA1-AS03-B2N1

Product Description

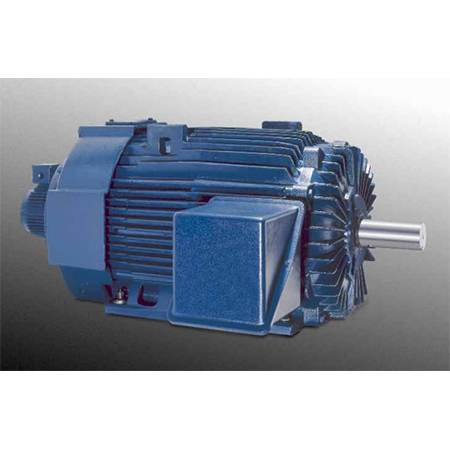

The 2AD100D-B05OA1-AS03-B2N1 AC motor from Bosch Rexroth is a part of the 2AD family. This series of motors is introduced to be powered with AC current from a tested source. These motors offer the best data output with the recommended power supply modules.

The AC motor is usually used in applications such as robotics as the main spindle motor is controlled by a main spindle drive. The 2AD AC motor is rated for operation in applications that operate within a temperature range of 0 to +45 degree Celsius. Above this temperature, data loss may occur. The average sound pressure level heard from 1 1-meter distance is 70 dB (A). The motor is rated to provide 0.028 kgm² moment of inertia. This model is engineered to operate with 173 V of nominal voltage. With the use of 35 A nominal current from an AC source, this motor provides smooth performance when used in conjunction with control units specified by Bosch. It can operate at a base speed of 1,500 revolutions per minute. During peak load, the user can expect a maximum velocity of 9,000 RPM.

This state-of-the-art AC motor by Rexroth has 60 kg mass which requires careful handling during transportation. When installing this device, make sure that the surface is horizontal and plain. The motor size is denoted by the alphabet ‘D’ in the type code (2AD100D-B05OA1-AS03-B2N1) while the ‘AS’ denotes its winding designation. The ‘B05’ represents its design for flange-type mounting that allows securing the motor with four standard bolts or screws. The motor can be powered from the A side using the connectors provided. The heat generated during operation is dissipated using an axial blower operated on AC 230 V.
