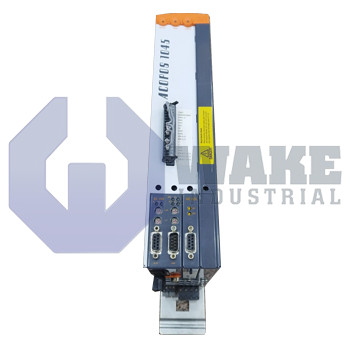

8V1045.00-2

Name: 8V1045.00-2
Brand: B & R Automation
Price: 449 USD
Availability: InStock
Rating: 4.6 (38 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships in 3 Days

Current response time:

3 Minutes 2 Seconds

The ACOPOS servo drive 8V1045.00-2 offers precise motion control with continuous current delivery of 4.4 A_eff and peak current up to 24 A_eff. Its integrated short-circuit and overload protection ensures reliable performance.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

The ACOPOS servo drive 8V1045.00-2 is designed for high-performance motion control applications in industrial automation. This model delivers efficient power management in various machinery and robotic systems by optimizing precision and speed for smooth motion control. Its compact design and advanced features make it suitable for diverse industries such as packaging, material handling, and automation.

This 8V1045.00-2 ACOPOS servo drive supports TT and TN network configurations, with a permissible mains input voltage of 3 x 400 VAC to 480 VAC ~ 10 % or 3 x 230 VAC ~ 10 %. It operates at a frequency of 50/60 Hz ~ 4 % and can handle a maximum load of 5 kVA. The device includes an integrated line filter complying with EN 61800-3, category C3. With a mains inrush current of 7 A at 400 VAC and a power dissipation of approximately 180 W, it ensures efficient energy use. The DC bus capacitance is 235 uF, with a 24 VDC input voltage tolerance of ~ 25 % and a current consumption of 2.5 A plus additional current for the motor holding brake.

In motor connection, the drive can provide a continuous current of 4.4 A_eff, with a peak current capability of 24 A_eff. The switching frequencies range between 5 to 20 kHz, with insulation stress adhering to IEC TS 60034-25:2004 standards. The maximum motor line length is 25 meters, with overload, short-circuit, and ground fault protection integrated into the system. With a maximum output frequency of 598 Hz, it ensures smooth and precise motor operation. This 8V10 series ACOPOS servo drive also supports up to three limit switch inputs and two trigger inputs that offers further operational flexibility in complex systems.

8V1045.00-2 Technical Specifications

Manufacturer:	B & R Automation
Overvoltage Category :	2
Weight:	4.1 kg
Series:	8V10 Series
Product Type:	ACOPOS Servo Drive
Mains Input Voltage:	3x 400 VAC to 480 VAC ~10%3x 230 VAC ~10%
Inrush Current:	7 AMP
Frequency:	50 / 60 Hz ~4%
Power Dissipation at Device Nominal Power without Braking Resistor:	180 W
Input Voltage:	24 VDC
Input Capacitance:	8200 uF

Frequently Asked Questions about 8V1045.00-2

Q: What are the network configurations supported by the 8V1045.00-2 ACOPOS servo drive?

A: The 8V1045.00-2 ACOPOS servo drive supports TT and TN network configurations. These configurations enable flexible integration into various industrial automation systems, ensuring seamless communication and control.

Q: What is the input voltage range for the 8V1045.00-2 ACOPOS servo drive?

A: The drive accepts a mains input voltage of 3 x 400 VAC to 480 VAC ~ 10 % or 3 x 230 VAC ~ 10 %. It operates at a frequency of 50/60 Hz ~ 4 %, providing versatile power input options.

Q: How much current can the 8V1045.00-2 ACOPOS servo drive handle?

A: The servo drive can deliver a continuous current of 4.4 A_eff and handle a peak current of up to 24 A_eff. This ensures efficient motor operation even under high-load conditions.

Q: What are the protection features of the 8V1045.00-2 ACOPOS servo drive?

A: The 8V1045.00-2 ACOPOS servo drive integrates overload, short-circuit, and ground fault protection. These features enhance system reliability and prevent damage during critical operations.

Q: What is the maximum motor line length supported by the 8V1045.00-2 ACOPOS servo drive?

A: The servo drive supports a maximum motor line length of 25 meters. This ensures flexibility in system design while maintaining precise control over long distances.

Internal Product Review

‘‘The ACOPOS servo drive 8V1045.00-2 is an excellent choice for industrial automation. This model offers 5 kVA load handling and 7 A inrush current at 400 VAC. Its compliance with EN 61800-3 and integrated line filter ensures superior energy efficiency while overload and ground fault protection enhance reliability.’’
