5PP320.0573-39

Name: 5PP320.0573-39
Brand: B & R Automation
Price: 447 USD
Availability: InStock
Rating: 4.4 (31 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships 1-2 Days

Current response time:

4 Minutes 17 Seconds

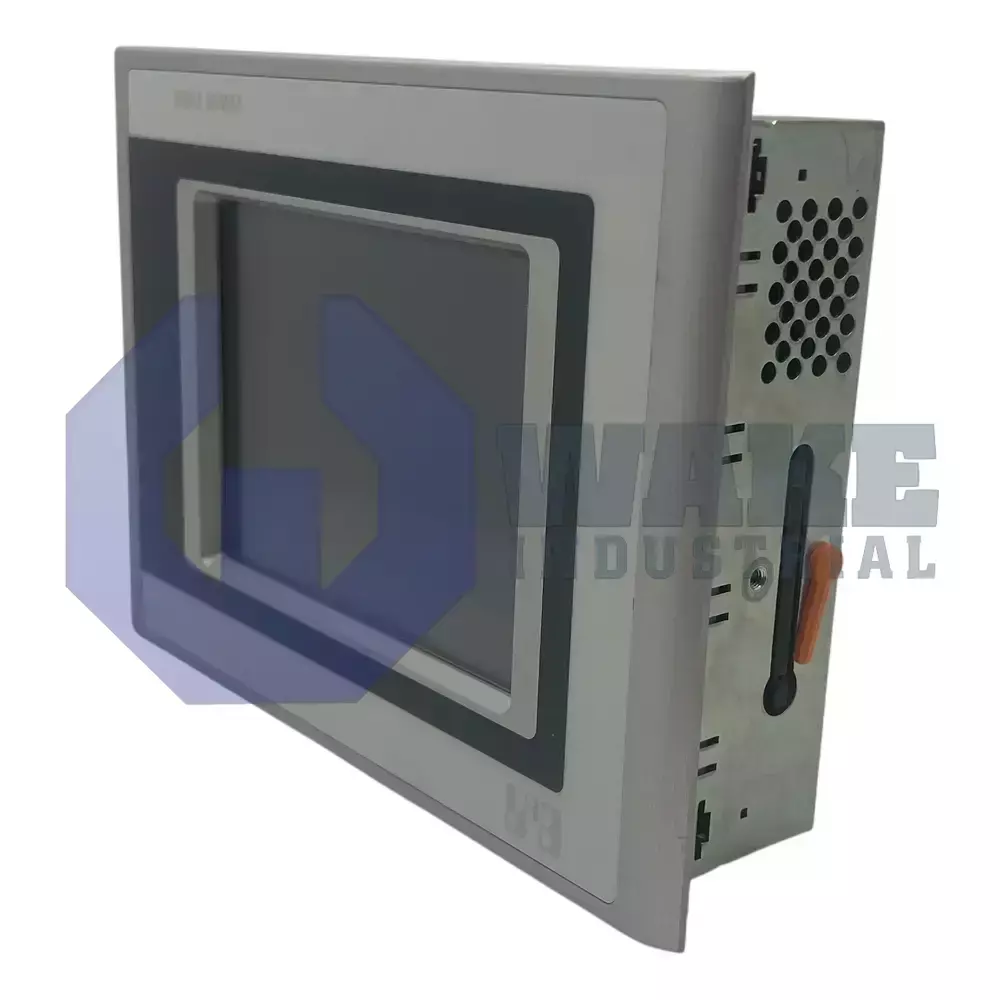

The 5PP320.0573-39 from B & R Automation features a 5.7-inch Color TFT display with a resolution of 640 x 480 pixels (VGA). Part of the 5PP Series, it offers a robust design with a protection type of IP20 on the backside and IP65 on the front. This model includes 256 MB SDRAM and an Ethernet interface of 10/100 MBit/s.

Preparing your secure checkout page...

Description
Specs
FAQ

Product Description

The B&R Automation manufactures the power panel 5PP320.0573-39. It uses a 5.7-inch Color TFT display as its interface. The 640 x 480 VGA resolution ensures smooth graphics rendering without taxing the system's resources. It does this by striking a compromise between clarity and computing efficiency. The panel has 256 MB of SDRAM on the inside. Complex industrial control systems need real-time data processing and seamless multitasking, which is made possible by this memory capacity. Expandable storage is also made possible via the Type I CompactFlash port, which enables users to store configuration files, logs, and firmware upgrades directly on the device.

Remote monitoring and control are made possible via the embedded 10/100 Mbit/s Ethernet connector, which allows for smooth integration into current network infrastructures. The RS232 serial interface is compatible with many devices and is a good option for legacy systems; nevertheless, situations that are prone to electrical noise should be taken caution while using it due to its lack of electrical isolation. Furthermore, USB 2.0 and USB 1.1 ports are included. Additionally, the panel has two LEDs. One for CF card activity and another that combines a user-programmable yellow LED with power status information. This increases the adaptability of the panel by allowing it to be used for personalized notifications or status indications.

Regarding electricity, the 5PP320.0573-39 can run on a supply between 18 and 30 VDC, which means it can be connected to a variety of industrial power sources. Its 13W average power usage is very low, which enhances energy efficiency. Crucially, the panel can be kept securely in a range of temperatures from -20 to +60 degrees C, and it is rated for operation in temperatures from 0 to +50 degrees C, making it appropriate for use in several industrial environments. The panel's comparatively light design weighs just around 1.4 makes installation easier and puts less stress on mounting components. Additionally, the panel's longevity is increased by the IP20 protection rating on the rear and IP65 protection rating on the front, which provide some resistance against water and dust infiltration. We offer a one-year warranty when buying from us.

5PP320.0573-39 Technical Specifications

Display Type:	Color TFT
Usb Interface Type:	USB 1.1, USB 2.04
Leds:	1x CF (yellow), 1x combined power (red/green) and user (yellow)
Power Supply:	18 - 30 VDC
Power Consumption:	13 W typical
Operating Temperature:	0 to +50 degrees C
Storage Temperature:	-20 to +60 degrees C
Diagonal:	5.7 in (144 mm)
Resolution:	640 x 480 pixels (VGA)
Touch Screen Type:	Analog, resistive
Touch Screen Technology:	Gunze
Sdram:	256 MB
Compactflash Slot:	Type I
Ethernet:	10/100 MBit/s
Serial Interface:	RS232, modem-capable, not electrically isolated

Frequently Asked Questions about 5PP320.0573-39

Q: Can the display be used with gloves in an industrial setting?

A: The analog resistive touchscreen is appropriate for usage in industrial settings since it is designed to be used with gloves on.

Q: With this panel PC, what kind of CompactFlash card is compatible?

A: Type I Compact Flash cards may be used with the panel PC to provide more storage.

Q: Is there electrical isolation at the RS232 interface?

A: In settings with strong electrical noise, care should be taken since the RS232 interface is not electrically insulated.

Q: What is the highest outside temperature at which this panel can be used?

A: This panel PC can operate at a maximum temperature of +50 degrees C (122 degrees F).

Q: Is it possible to utilize the user-programmable LED for personalized status indicators or alerts?

A: The user may configure the yellow LED to indicate different statuses or alarms.

Internal Product Review

‘‘With IP20/IP65 protection, the 5PP320.0573-39 is a sturdy panel PC is designed for harsh situations and is part of B&R Automation's 5PP line. Its low power consumption and power supply range of 18 to 30 VDC makes it an energy-efficient option for industrial automation.’’
