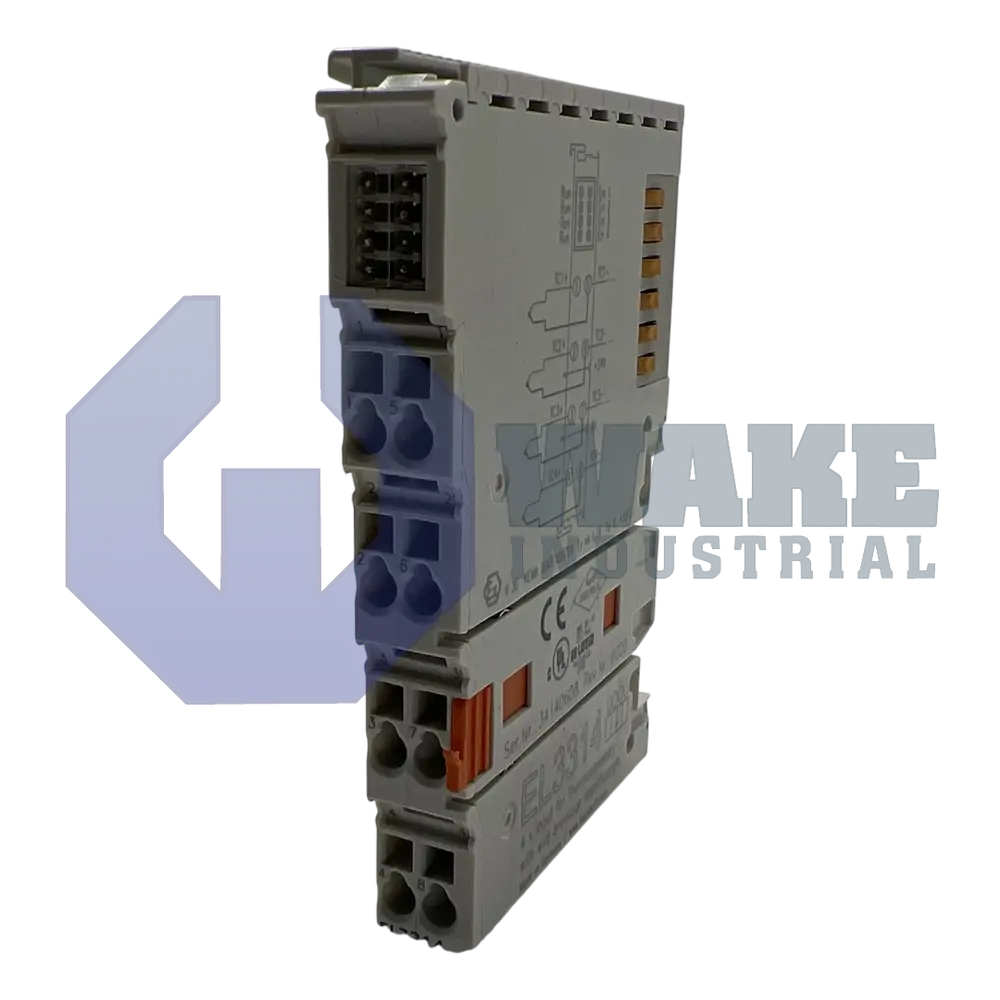

The EL3314-0010 terminal features a 4-channel analog input for temperature with thermocouple support, offering a high-precision 24-bit signal resolution. As part of the EL EtherCAT Terminal Series from Beckhoff, it conforms to EN 61000-6-2/EN 61000-6-4 vibration standards and uses a spring-loaded connection technique.

Warranty
Wake Industrial Warranty
To contact sales for pricing and lead time:

Payment Methods

Visa
Mastercard
AmEx
Wire Transfer

Shipping Methods

DHL
UPS
FedEx
Freight

Our Credentials

Cary Chamber
DUNS Registered
SAM Registered
BBB Accredited

Product Description:

The EL3314-0010 is a high-precision 4-channel analog input terminal for thermocouples. This terminal is manufactured by Beckhoff Automation; it enables the direct connection of thermocouples and allows for a more precise measurement of temperature due to its improved measuring circuit and more advanced reference joint measurement. This product is also a self-diagnostic device that can detect wire breaks and alert operators through its error Light Emitting Diodes. Before the delivery of this product, it is calibrated against a high-precision reference voltage; by default, it is set to a resolution of 0.01 Celsius per digit. To ensure the accuracy reported for this product, operators should ensure that it is installed in a horizontal position and that the ambient temperature is about 23 degrees Celsius. An additional software-based MC filter can be used for smoothing value measured by the terminal; also, an external cold junction compensation is possible.

The EL3314-0010 can be used with up to five different types of thermocouple sensors, including type B, C, E, J, K, L, N, R, S, T, and type U thermocouple sensor. The product is also designed to be used with 2 wire connection technology. The maximum cable length of this product is 30 meters; if a longer cable is to be used, suitable surge protection must be provided.

The operation resolution of the EL3314-0010 is about 24 bits; it also functions with a Multiplex sampling type and a differential ground reference. The input filter cut-off frequency on this product is about 1 kilohertz; also, the software filter is between 5 to about 30 kilohertz. The conversion time is also between 1.6 seconds to about 5 milliseconds depending on the configuration and filter settings.

Conversion time
<0.1 ms
Dimensions (housing)
12 x 100 x 68 mm
Explosion protection
ATEX Zone 2 (gas), non-intrinsically safe
Input ground reference
Differential
Measurement uncertainty
0.1–0.5%
Module type
4-channel high-precision analog input
Sampling rate
0.1–1 ksps
Sampling type
Multiplex
Signal connection
Spring-loaded
Signal resolution
24 bit
Supported signal types
Voltage; RTD; Thermocouple
Thermocouple input range
<100 mV
Wiring
2-wire

Frequently Asked Questions about EL3314-0010:

Q: How is the EL3314-0010 different from other EtherCAT terminal?

A: The EL3314-0010 can directly operate thermocouple sensors using the 2-wire connection technique.

Q: How many types of thermocouple can be used with this EtherCAT analog terminal?

A: The EL3314-0010 can be used with more than 10 different types of thermocouple for temperature measurement. These compatible thermocouples include the Type B,C,E,J, K,N, R, S, T, U. The default setting is suited to the type K.

Q: Can the EL3314-0010 carry out any diagnostic operation?

A: Yes. The EL3314-0010 can automatically detect channel by channel wire break detection, it also feature internal and external cold junction.

Q: Is the EL3314-0010 able to withstand high ambient temperature?

A: The maximum ambient temperature suited for the operation of this product is 55 degree Celsius.

Q: Will wake industrial deliver the EL3314-0010 to me outside the United states?

A: Yes. Wake industrial offers world wide delivery of this product through FedEx, UPS, and DHL.


Internal Product Review

  • ‘‘The EL3314-0010 is perfect for temperature measurement in industrial automation system. It maintains a very high precision and also carries out channel by channel wire break detection.’’
