Product Description

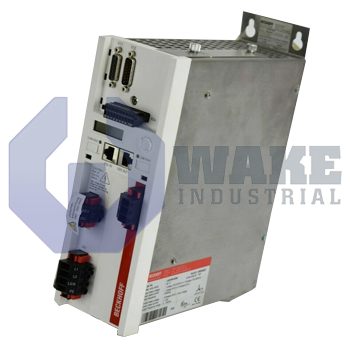

The AX5106-0000-0202 is a product of Beckhoff Company under its AX5000 series of servo drives. The drive is used for position, speed, and torque control in suitable synchronous and asynchronous motors. It is designed for installation as a component of an electrical system or machine and can only be operated when integrated into the system or machine. Only technical people with knowledge of automation and control technology may install, operate, and maintain the AX5106-0000-0202. During operation, the surface of the drive may exceed 50 degrees. Avoid touching it immediately after operation. Wait for at least 15 minutes for it to cool.
The AX5106-0000-0202 features a single channel and has a rated current of 6A per phase. It has a rated output current at 50 degrees of 4.5A, minimum rated motor current of 1A, and a rated supply voltage of 3 x 100 … 480 V AC. The maximum DC link voltage is capped at 890V DC and the peak output current is 13A. Other technical parameters include a continuous braking power of 150W, a maximum braking power of 14kW, and a power loss of 85W. It comes with an EtherCAT system bus and weighs 5kg.
The AX5106-0000-0202 should be brought to operation in an ambient temperature of 0 to 50 degrees, stored and transported in an ambient temperature of -25 to 70 degrees, and installed at a maximum height of 1000 meters above sea level. It features a protection category of IP 20 which makes it important you mount it in a housing. The installation position is vertical. You should ensure that the enclosure has adequate air circulation to enable optimum cooling of the AX5106-0000-0202 servo drive. Get this Beckhoff drive from Wake Industrial.
